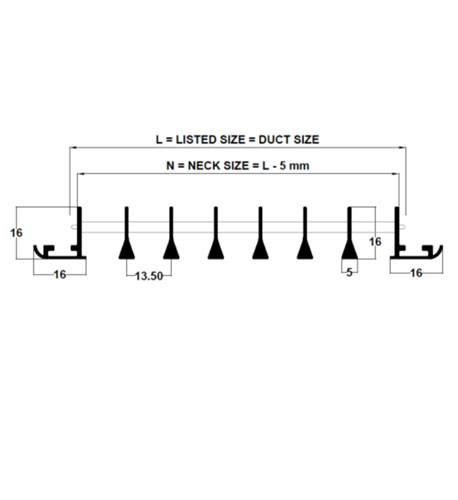

| MODEL | TYPE | BAR | PITCH | FLANGE | DEFLECTION | ACCESSORIES | COLOUR |
|---|---|---|---|---|---|---|---|
| BG-5678 | – | 5mm | 13.5mm | 16mm | 0 Deg | Collar Damper (D) | Powder Coated |
| Black Bush (B) | 3mm | 19mm | 30mm | 15 Deg | Splitter Damper | Anodised Wood Finish Mill Finish | |
| 25mm | 30 Deg | ||||||
| 45 Deg |
information
-
product name:
BG Bar Grille
-
Model No
BG-5678
-
category:
Grille
-
location:
Sivakasi, Tamil Nadu
-
Specification:
A Bar Grille (BG) is a type of HVAC grille featuring linear bars, used for air distribution and ventilation while providing a sleek, aesthetic appearance.
Description
Design: Features a linear bar design for a sleek, minimalist appearance that blends well with various interior aesthetics.
Function: Used in HVAC systems for efficient air supply and return, contributing to proper air distribution and ventilation.
Materials: Commonly made from durable materials like aluminum or steel, ensuring long-lasting performance.
Applications: Suitable for both commercial and residential settings, offering versatility in different environments.
Airflow Control: Helps in controlling the direction and volume of airflow, enhancing comfort and system efficiency.
Product Order List

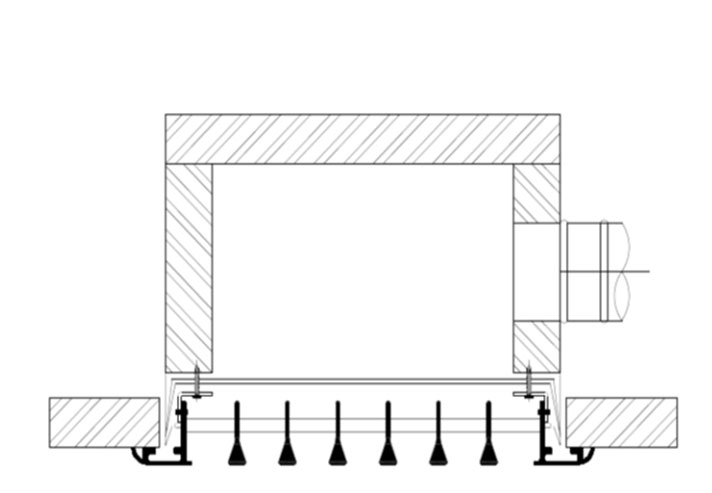

Fixed Details

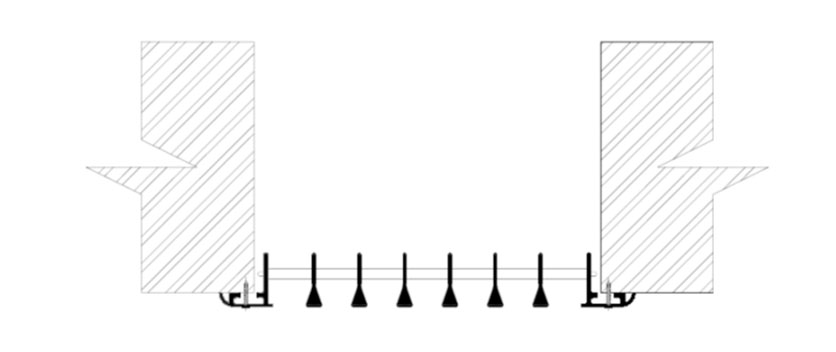

Option A: Screw on front side of flange

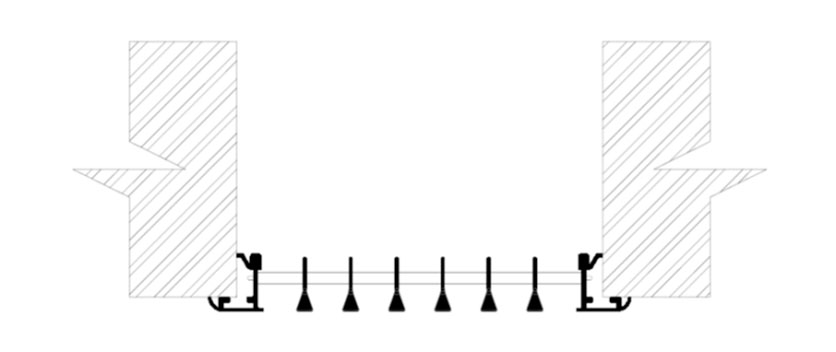

Option B: Concealed screw on inside clamp built in to the grille.
Option A: Optional Clamp can be provided concealed fixing
