| Connector Material | PVC | Neoprene | Silicone |
| Construction | Galvanised Steel Plate + Coated Fabric + Galvanised Steel Plate | Galvanised Steel Plate + Coated Fabric + Galvanised Steel Plate | Galvanised Steel Plate + Coated Fabric + Galvanised Steel Plate |
| Steel Plate Thickness | 0.4 mm | 0.4 mm | 0.4 mm |
| Base Fabric | Polyester | Fibre Glass | Fibre Glass |
| Coating | PVC (both sides) | Neoprene (both sides) | Silicone (both sides) |
| Colour | Black | Black | Grey |
| Temperature Range | -30oC / +80oC | -30oC / +150oC | -50oC / +250oC |
| Fire Resistance | Fire retardant | Non-flammable | Non-flammable |
| Standard Length | 25 m / 30 m / 45 m | 25 m / 30 m / 45 m | 25 m / 30 m / 45 m |
| Standard Dimensions | 35mm + 60mm + 35mm / 45mm + 60mm + 45mm / 45mm + 75mm + 45mm / 45mm + 150mm + 45mm / 50mm + 60mm + 50mm / 70mm + 100mm + 70mm | ||
| Packing | Single cardboard box | Single cardboard box | Single cardboard box |
| Fire Certificate | – | – | – |
| Certificate | – | – | – |
information
-
product name:
duct connector
-
Model No
DCD
-
category:
Ducting
-
location:
Sivakasi, Tamil Nadu
-
Specification:
A duct connector is a flexible coupling used to join sections of ductwork in HVAC systems, allowing for movement while maintaining airflow.
Product Order List

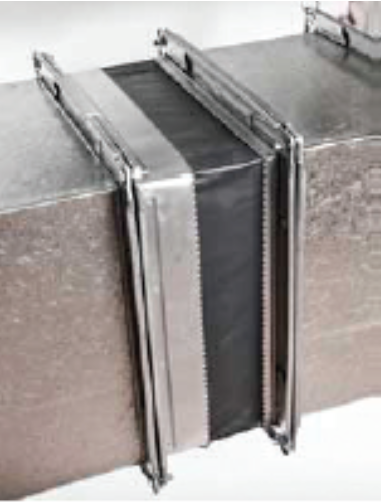

Fixing Details
