| MODEL | FLANGE | ACCESSORIES | COLOUR |
|---|---|---|---|
| AL | 20 mm | Bird Screen Mesh | Powder Coated |
| 30 mm | Mosquito Mesh | Anodised | |
| Collar Damper | Mill Finish | ||
| Metal Filter | Wood Finish |
Fresh Air Louver
AL
Louver
Sivakasi, Tamil Nadu
A fresh air louver is a vented architectural feature that allows fresh air to enter a building while blocking debris and controlling airflow.
Purpose: A fresh air louver facilitates the intake of fresh air into a building or ventilation system while preventing the entry of debris, insects, and precipitation.

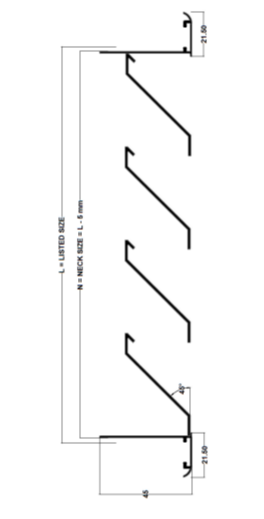

Design: It consists of angled slats or blades that are arranged to allow airflow while blocking unwanted elements, often made from materials like aluminum, steel, or plastic for durability and weather resistance.
Applications: Commonly used in HVAC systems, industrial facilities, commercial buildings, and residential homes to improve air quality and ventilation.
Advantages: Enhances indoor air quality by ensuring a continuous supply of fresh air, reduces energy costs by optimizing ventilation, and protects internal components of HVAC systems from external contaminants.
Varieties: Available in various sizes, shapes, and configurations, including fixed or adjustable slats, to accommodate different architectural designs and ventilation requirements.
| MODEL | FLANGE | ACCESSORIES | COLOUR |
|---|---|---|---|
| AL | 20 mm | Bird Screen Mesh | Powder Coated |
| 30 mm | Mosquito Mesh | Anodised | |
| Collar Damper | Mill Finish | ||
| Metal Filter | Wood Finish |

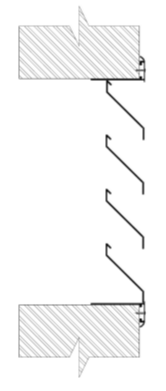

Option A: Screw on front side of flange

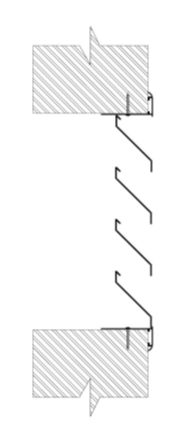

Option B: Concealed screw on inside surface of flange
Option C: Optional Clamp can be provided For concealed fixing.
